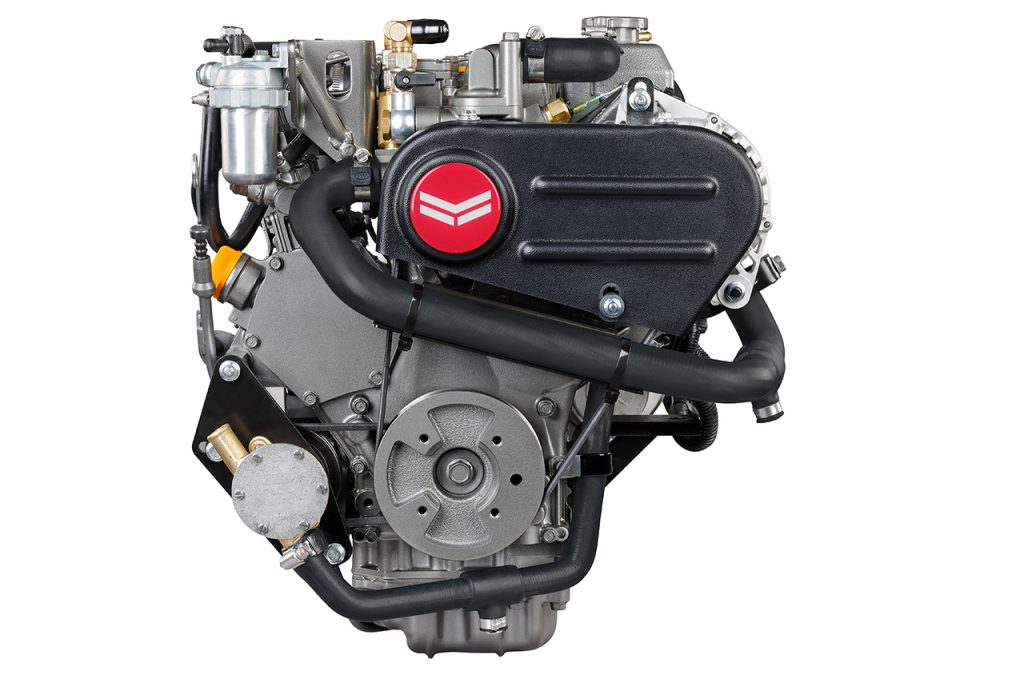

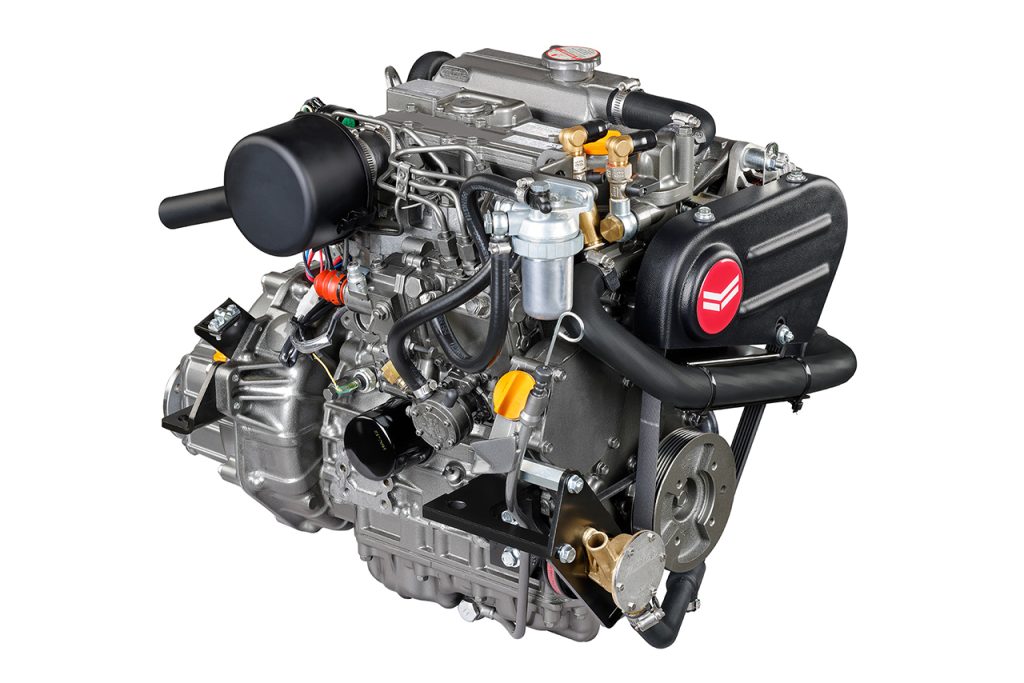

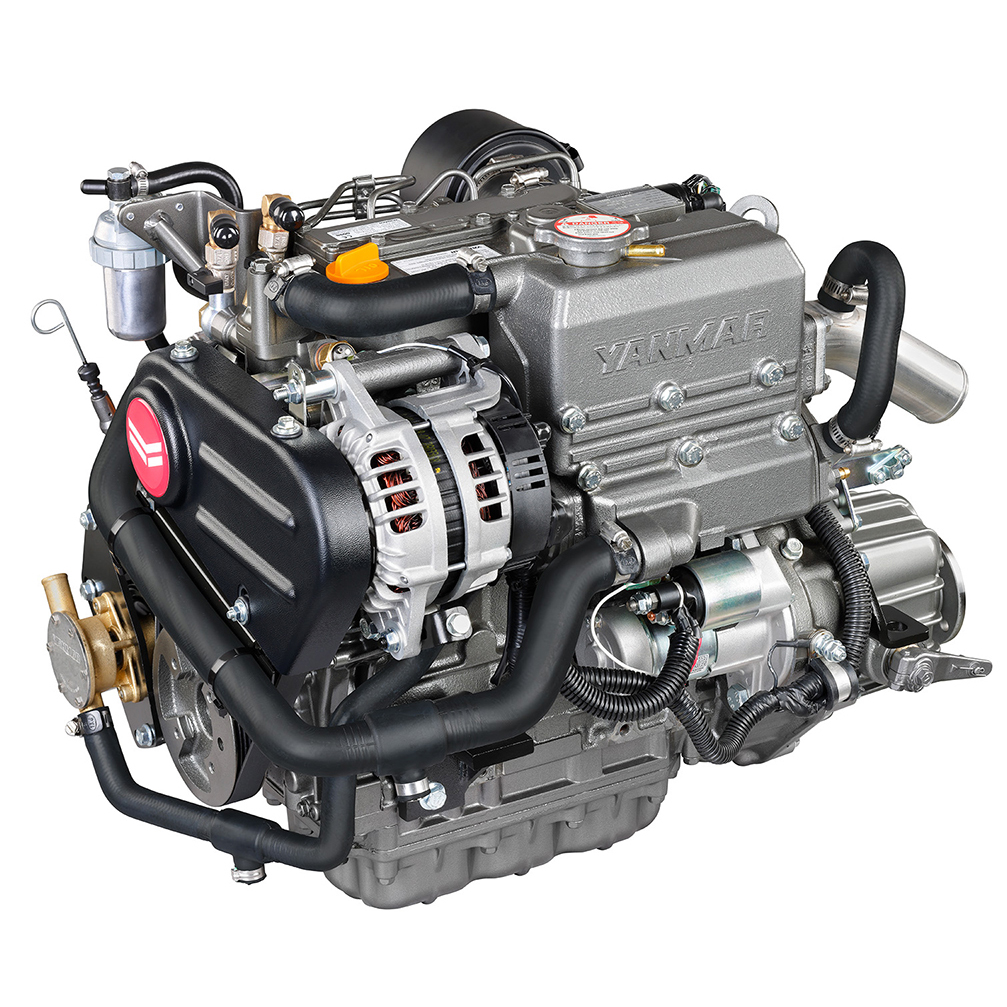

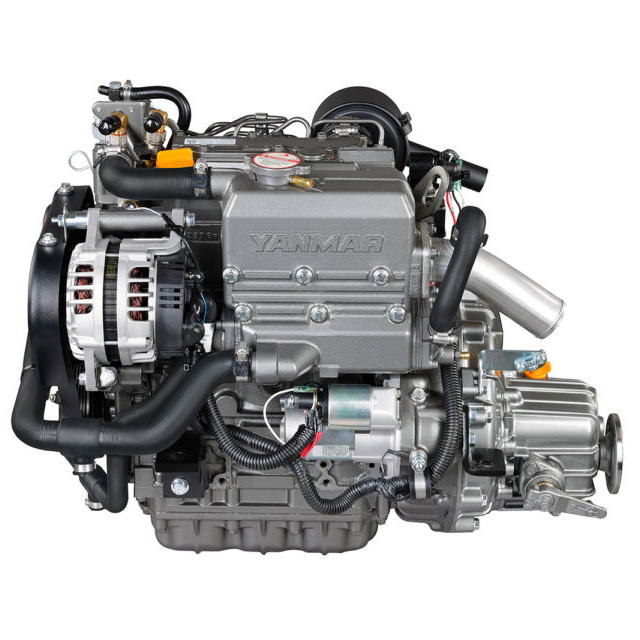

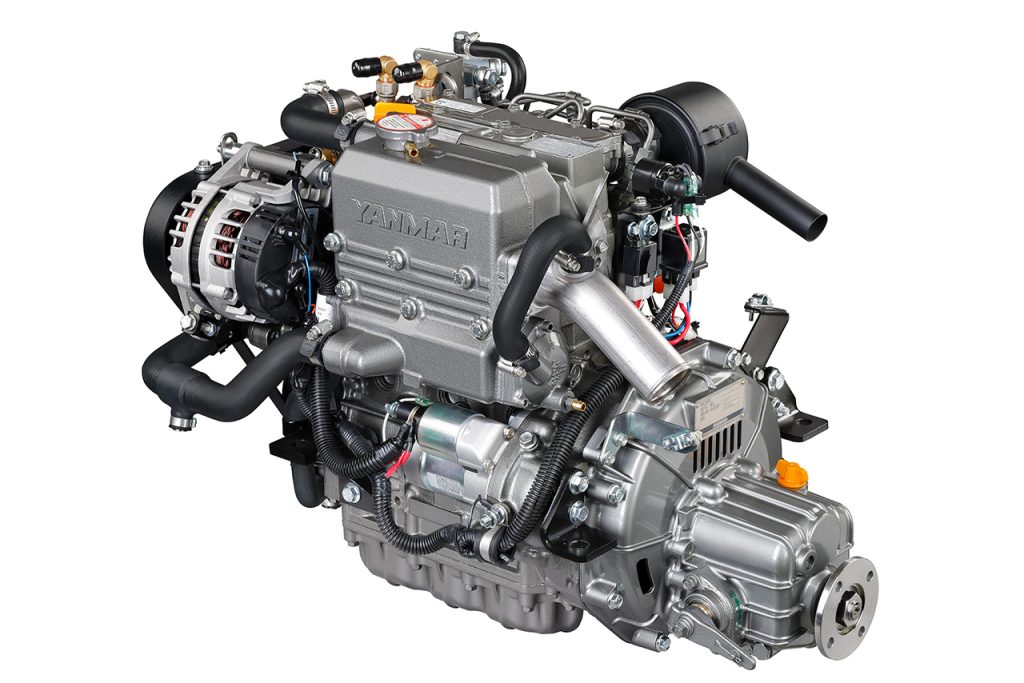

Yanmar 3YM30AE
The YM series of mechanical engines are built for smaller sailboats and pleasure craft. Delivering reliable power and smooth performance for unforgettable on-water experiences.
- The vertical, water-cooled 4-cycle diesel engines are controlled using the YANMAR B20 mechanical panel.
- Certifications include RCD 2, EPA Tier 3, EPA Tier 3C, BSO II and EMC.
- With flexible mounting, the standard engine package includes an L-type exhaust mixing elbow, B20 panel, expansion tank for fresh water cooling system, electric stop solenoid and belt safety cover.
- Further optional accessories are available.

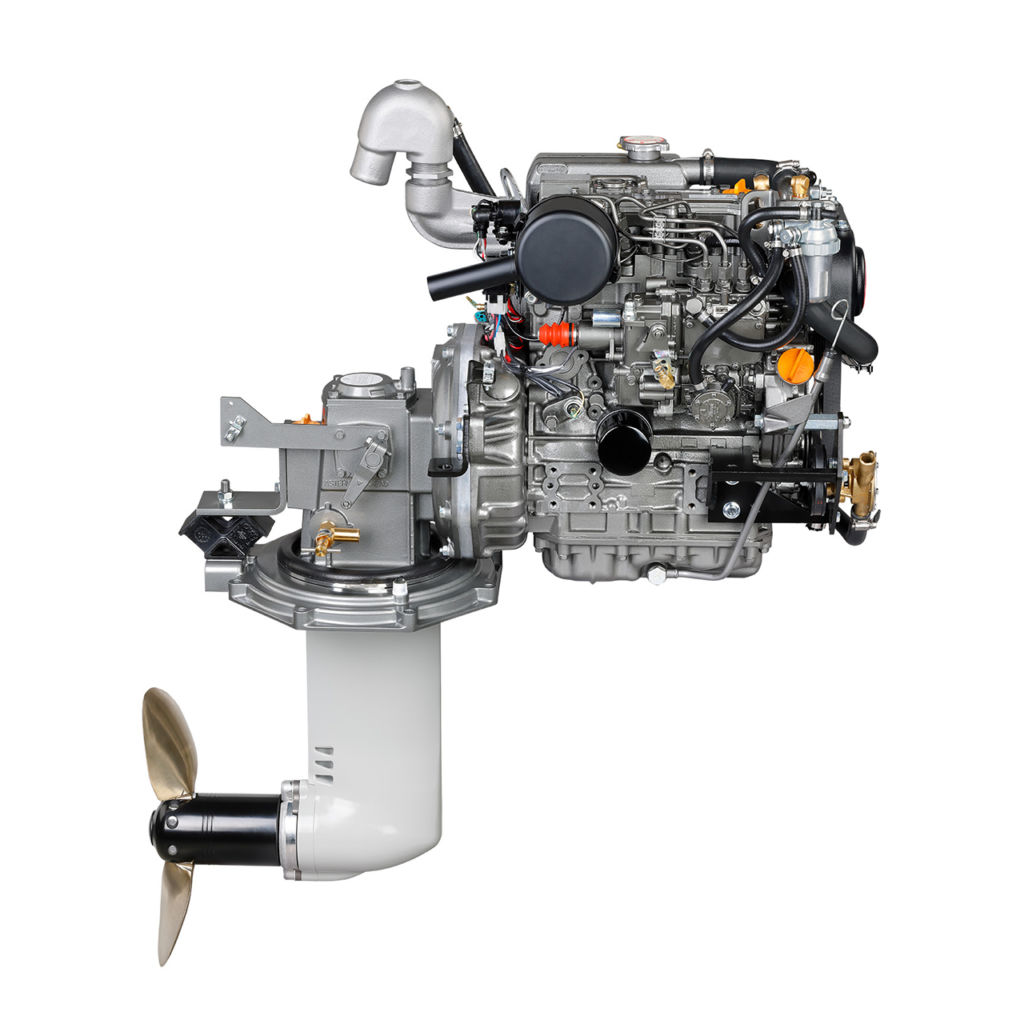

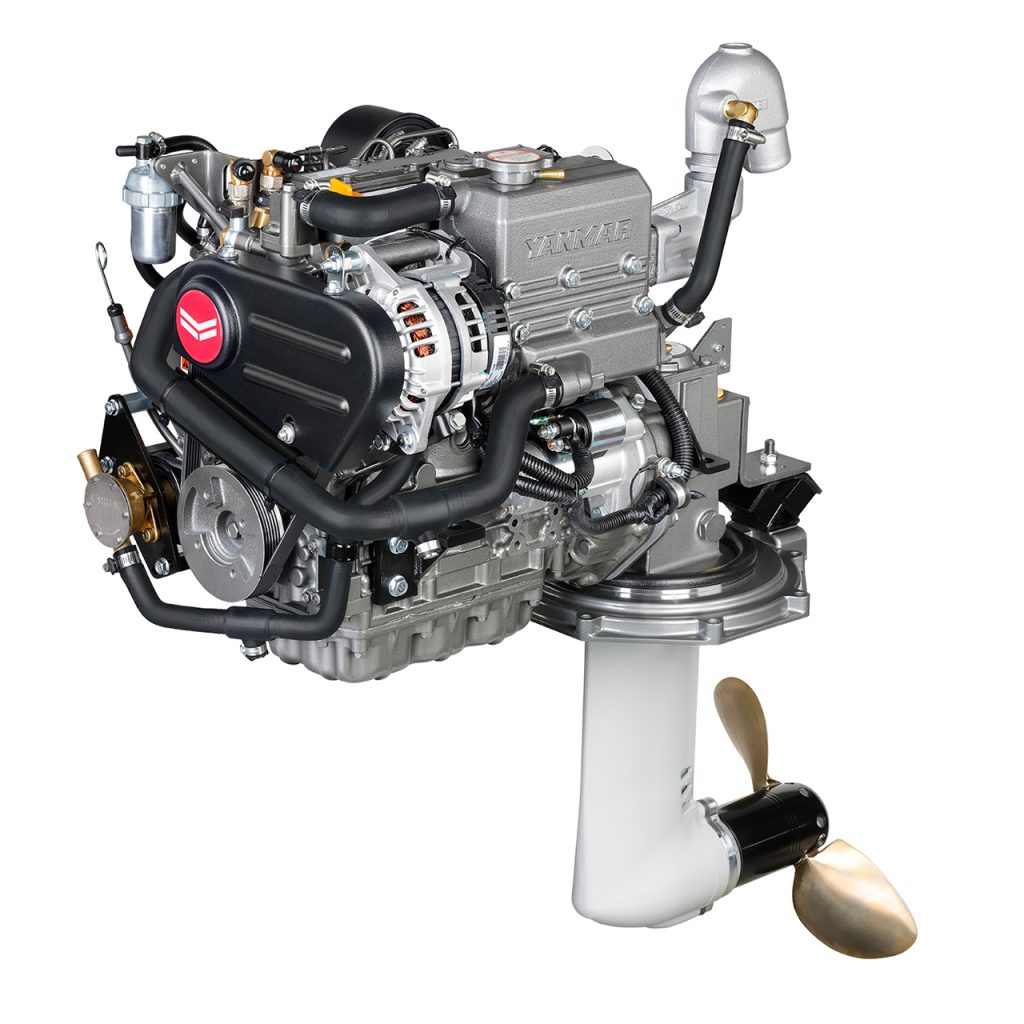

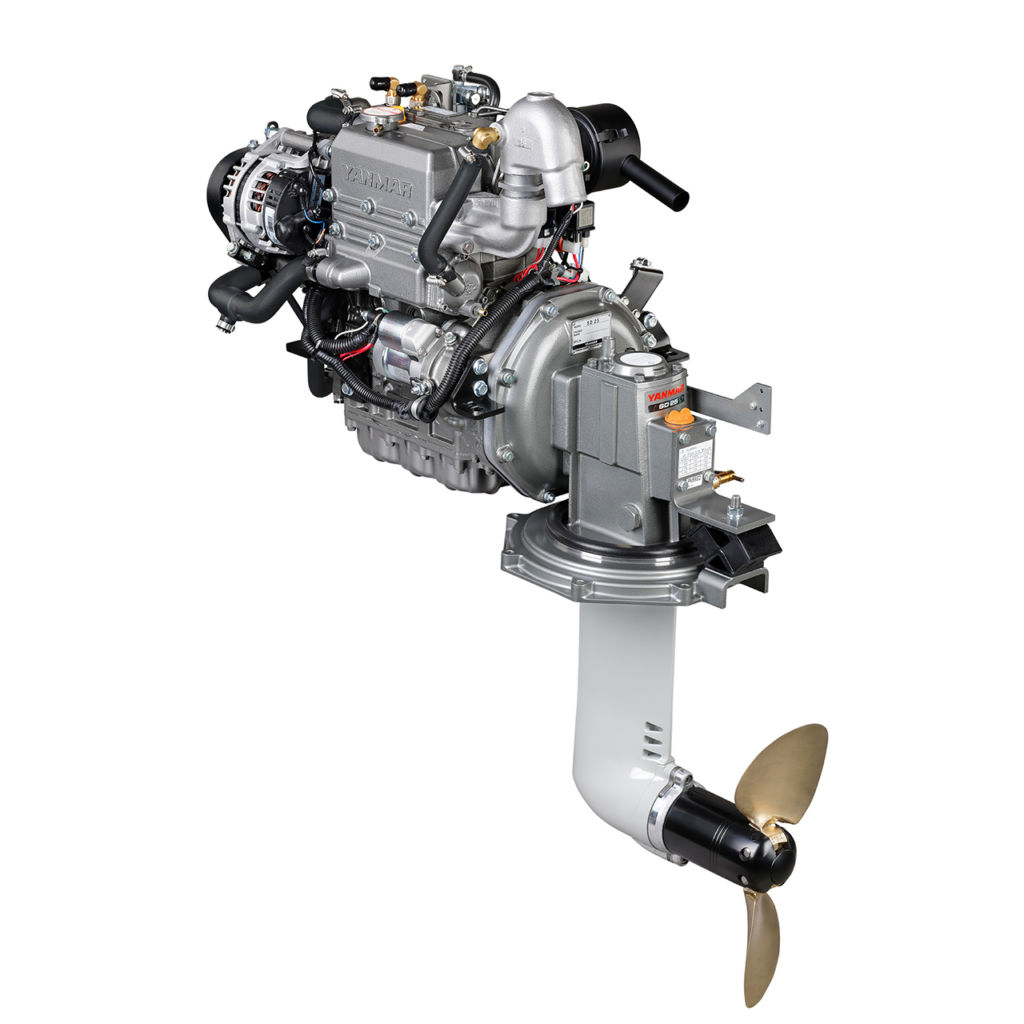

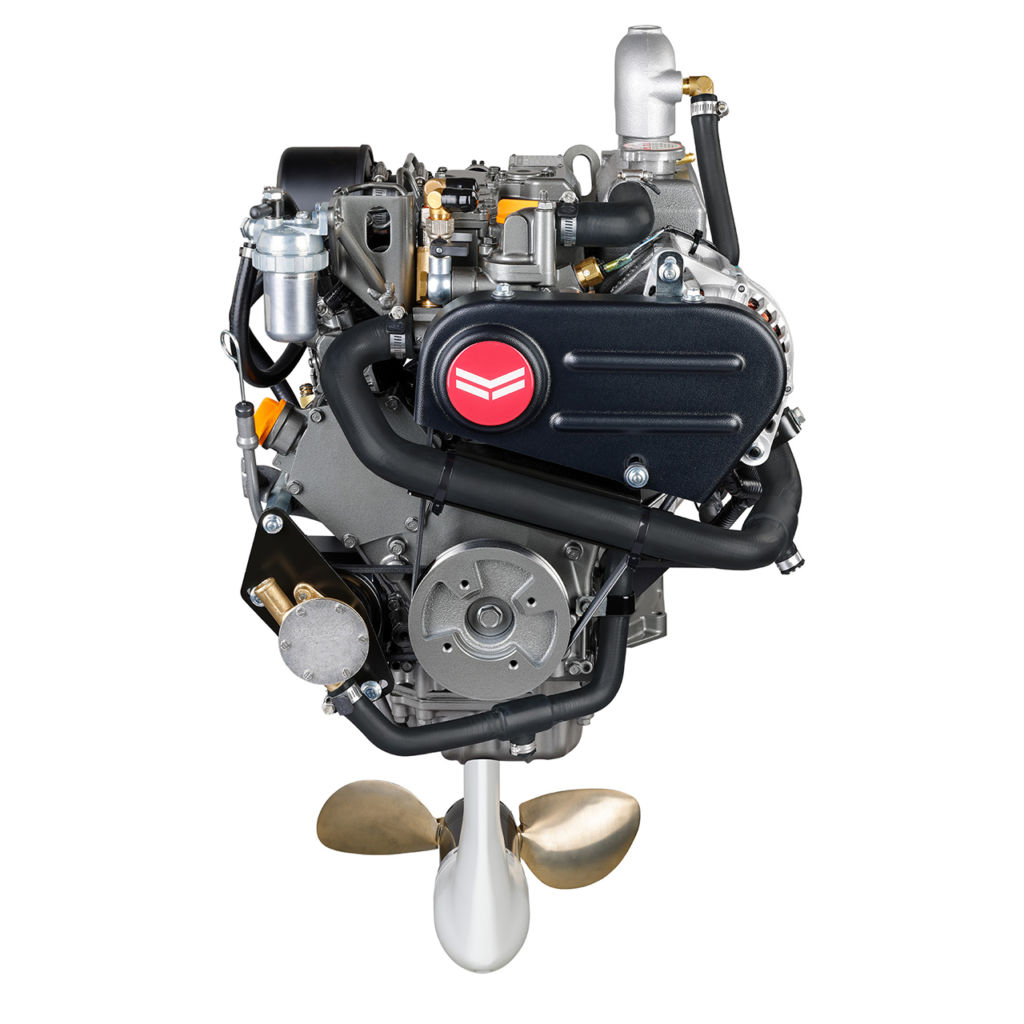

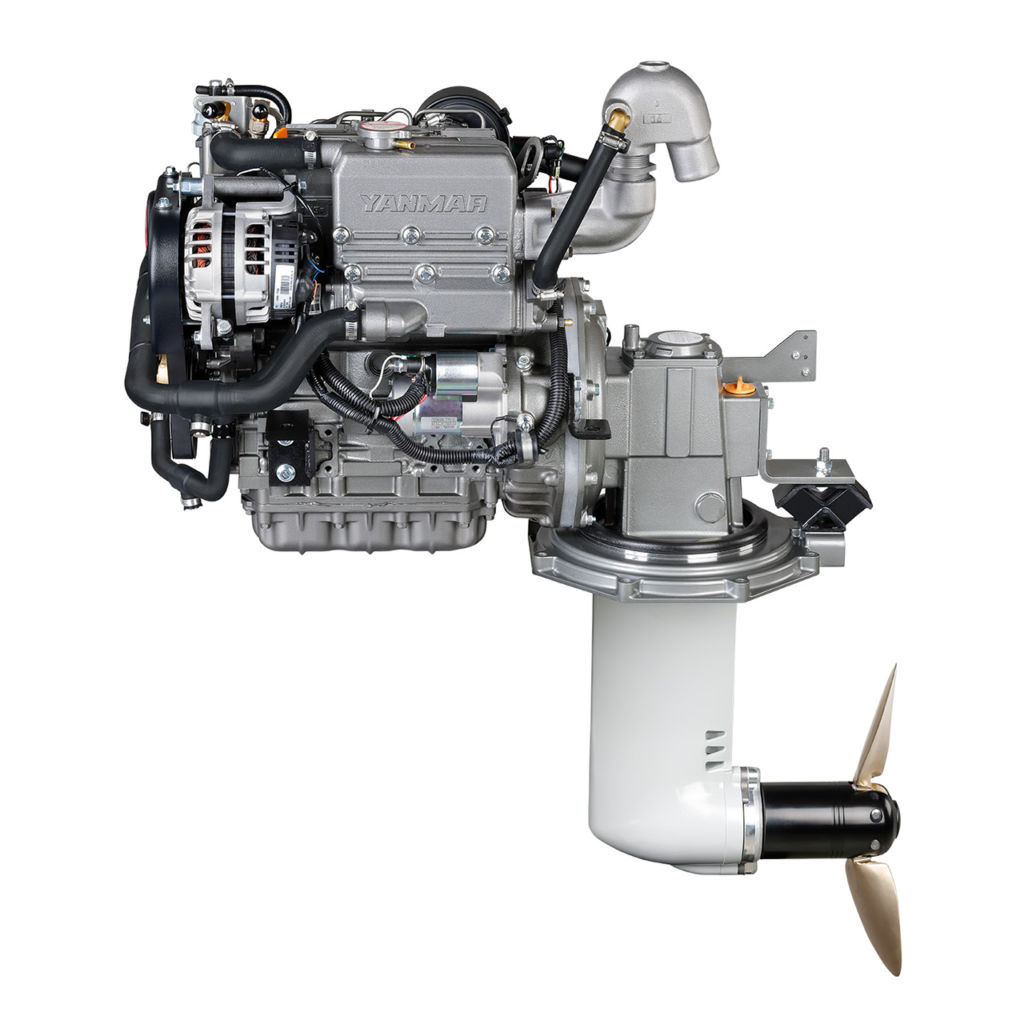

- All YM series engines are compatible with Kanzaki Shaft Drive Gears, SD25 Sail Drive, B20 & C30 Mechanical Panels
Rated Output
29.1 mhp (21.3 kW)
Engine Type
4-stroke, vertical, water-cooled diesel engine
Displacement
1.115 L (68 cu in)
No. of Cylinders
3
Aspiration
Natural Aspiration
Fuel Induction
Indirect Injection (In-line pump)
Rom/Engine Speed
3600 rpm
Lubrication
Enclosed, forced lubricating system
Alternator
12V - 60A or 80A (depending on year/option)
Control
Mechanical (Throttle & Gear Shift)
Emission Compliance
RCD 2 EPA Tier 3 EPA Tier 3C BSO II EMC
Weight
Approx. 133 kg (293 lbs) w/ gear
Dimensions
716 mm x 485 mm x 545 mm
